Description

Author: Venax

Jacky has learnt about the importance of strong passwords and made sure to encrypt the BitLocker drive with a very long and complex password. We managed to capture the RAM while this drive was opened however.

See if you can break through the encryption!

Download the disk image here and the RAM dump here.

Solution - Using my Volatility Web Docker

I wanted to test my Volatility Web Docker setup for this challenge which had the dependency of lacking the bitlocker plugin. So thanks to lorelyai’s volatility3-bitlocker, I was able to integrate the necessary plugin and proceed with the analysis.

Setting up Volatility Web

With Docker, download and initial build the Volatility Web GUI Docker:

bash 3 lines
git clone https://github.com/JonesCKevin/Volatility3-WebGui-Docker.git
cd Volatility3-WebGui-Docker
docker compose up -d

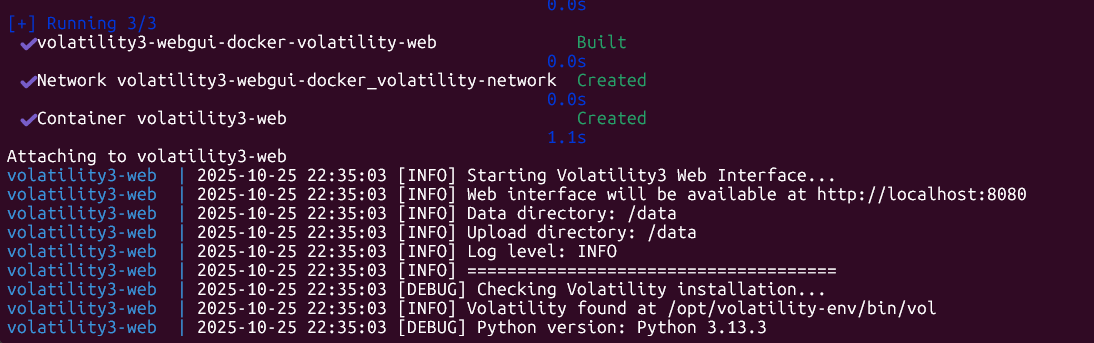

Docker Compose Up

Once completed, move the memory dump provided into the data directory.

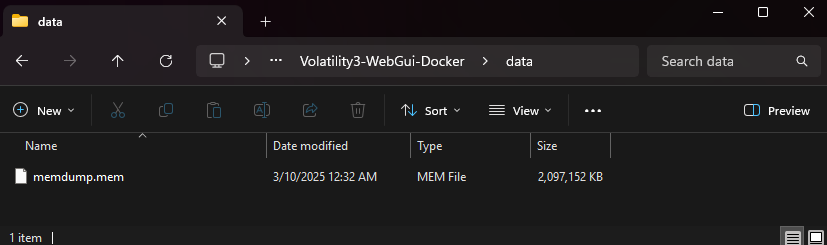

Move Memory Dump

Open your web browser and go to http://localhost:8080. You should see the Volatility Web GUI.

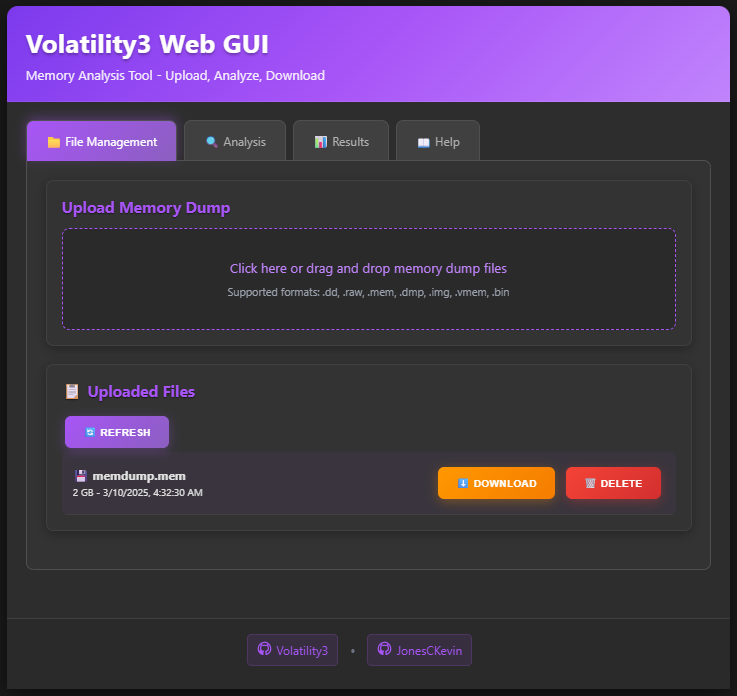

Volatility Web GUI

Initiate Analysis

Select Analysis tab and within the custom input type in bitlocker and press Run.

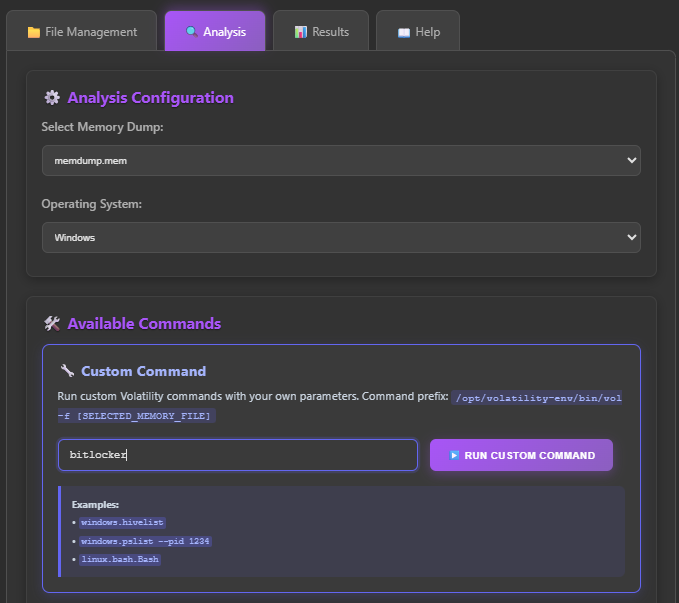

Volatility Bitlocker Analysis

After an eternity and a half, the analysis completes and reveals the Bitlocker password.

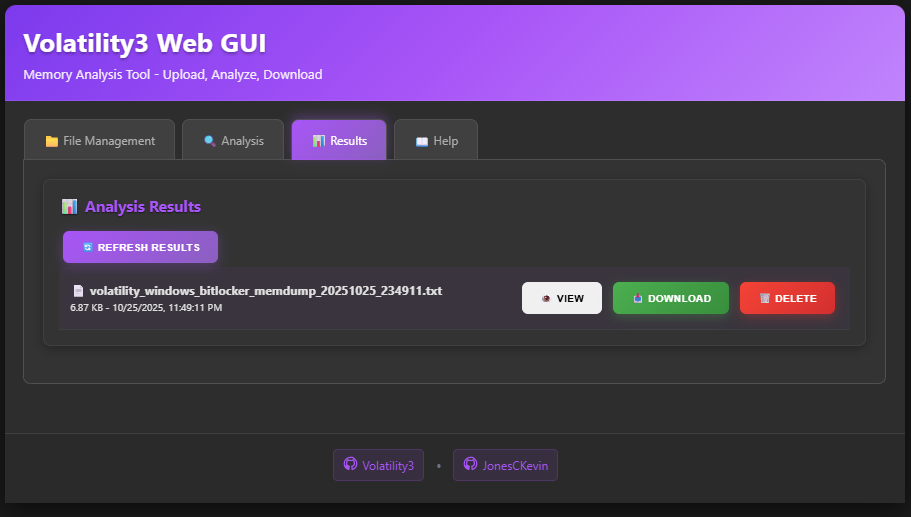

Bitlocker Analysis Complete

For transparency, I did end up running the command directly in the docker terminal to ensure it completed successfully using this specific command: This was because I needed the output files from the plugin to proceed. This should be added in the repo now.

bash 1 lines
/opt/volatility-env/bin/vol -f /data/memdump.mem -vvv windows.bitlocker --tags FVEc Cngb None --dislocker
FileOffsetTagCipherFVEKTweakSize
File0x80878347ece0CngbAES-128039e111586d5f9d974a571190474d097672
File0x8087835eab80CngbAES-25665b8064ec7acea96726aa18d294213176fd513a62a95c80720648f0590211364672
File0x808784457c90CngbAES-128d40582190eb6f067691120bbbe55e511672
File0x8087865bead0NoneAES-1284f79d4a00d5e9b25965b89581a6a599c4109b89a973fd5c65ed75841404e7c391280

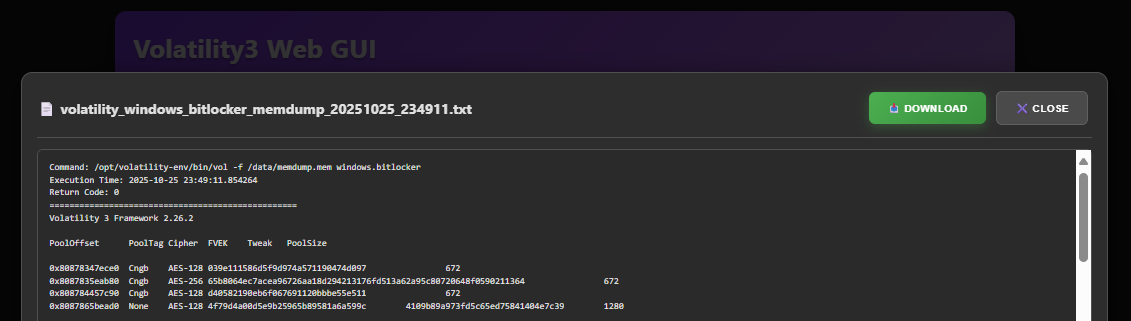

Bitlocker Decrypted FS

Using the Password to Unlock the Drive

Make mount points

bash 2 lines
sudo mkdir /mnt/bit2-decrypted
sudo mkdir /mnt/bit2-fs

Using Dislocker to unlock the Bitlocker drive

bash 1 lines
sudo apt-get install dislocker ntfs-3g

Unlock the Bitlocker volume

bash 1 lines
sudo dislocker -v -k 0x8087865bead0-Dislocker.fvek -V bitlocker-2.dd /mnt/bit2-decrypted

Mount the decrypted filesystem

bash 1 lines
sudo mount -t ntfs-3g /mnt/bit2-decrypted/dislocker-file /mnt/bit2-fs
Plain Text 4 lines
The disk contains an unclean file system (0, 0).
Metadata kept in Windows cache, refused to mount.
Falling back to read-only mount because the NTFS partition is in an unsafe state. Please resume and shutdown Windows fully (no hibernation or fast restarting.)
Could not mount read-write, trying read-only

Access the mounted filesystem and retrieve the flag

bash 5 lines
ls /mnt/bit2-fs
# '$RECYCLE.BIN'  'System Volume Information'   flag.txt

cat /mnt/bit2-fs/flag.txt
# picoCTF{}

Mounted Bitlocker Decrypted FS

Clean up mount points

bash 4 lines
sudo umount /mnt/bit2-fs
sudo umount /mnt/bit2-decrypted
sudo rmdir /mnt/bit2-fs
sudo rmdir /mnt/bit2-decrypted

Update for Web UI

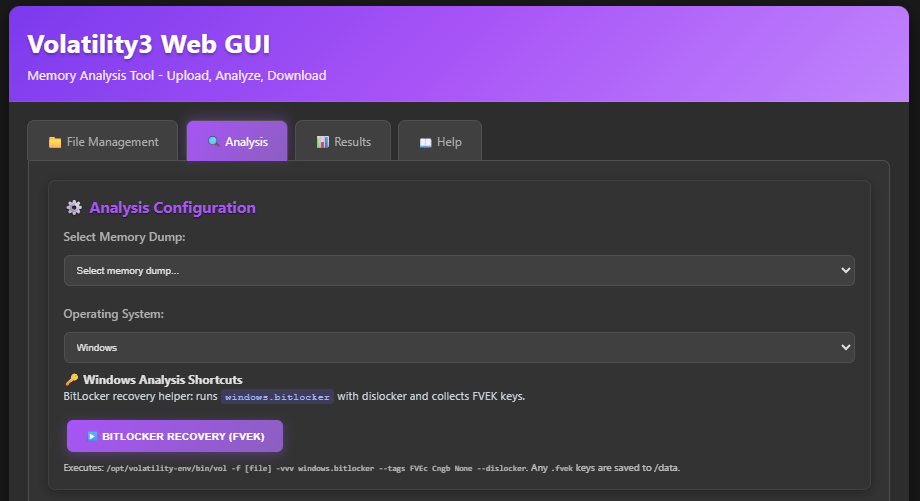

Volatility Bitlocker Plugin Added

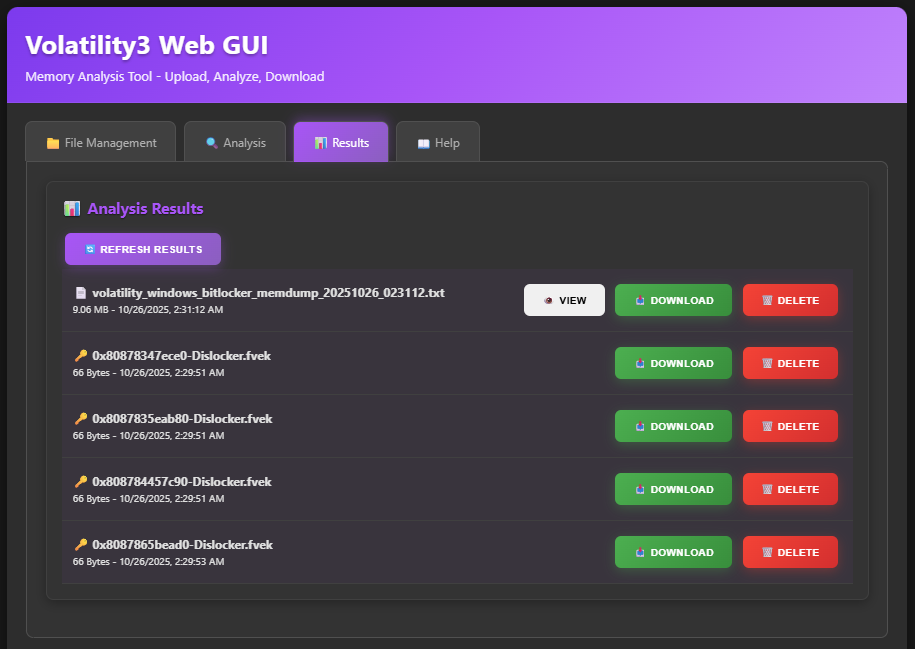

Bitlocker Plugin in Web UI

Flag Answer

Click to reveal the flag

Full: picoCTF{B1tl0ck3r_dr1v3_d3crypt3d_9029ae5b}
